    Basic vector footstep response


    This installation is designed for real-time measurement of human basic vector footstep response. It can be used in medical treatment of vertebral column abnormalities.

    Computer-based system provides fullanalyses of patient biomechanical condition.

  • ВС-01

    VS-01

    The vacuum stand is designed for fixing the gypsum positives when manufacturing laminated plastics using vacuum lamination technology.

    ВС-01.01 - Vacuum tube with 2 vacuum channels

    ВС-01.02 - The console with 2 mounting plates and 2 fixing screws.

  • НВП-1

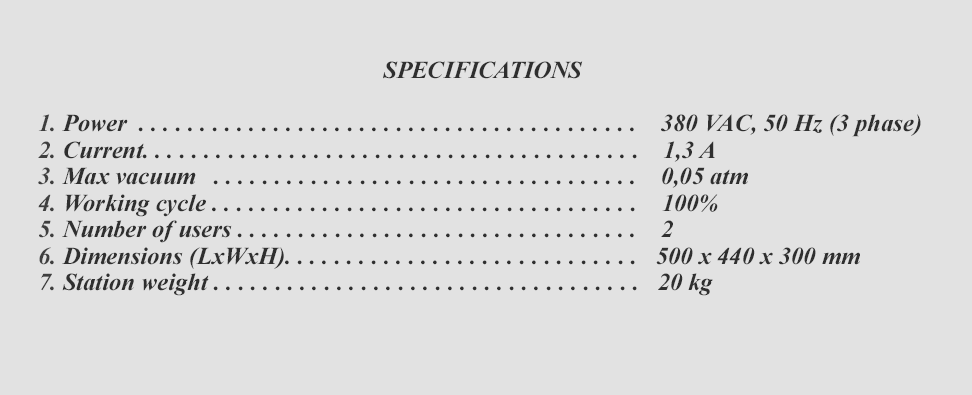

    Portable vacuum station


    This portable oillubricated pump vacuum station PVS-1 is designed to provide required vacuum fora working place of a prosthesist. VS-1 is used to manufacture orthoses and prostheses by deep vacuum lamination.

    Details
  • ПГВ-01

    PGV-01

    Devices for deep drawing of thermoplastic materials up to 20 mm thick.

    PGV-1.20.01 - Fixing frame. Material - aluminum. Inner diameter - 360 mm

    PGV-1.20.02 - Pressure frame. Material - aluminum. Inside diameter - 260 mm

    PGV-1.20.03 - Pressure frame. Material - aluminum. Inner diameter - 360 mm

    PGV-1.10.01 - Vacuum tube with plate and vacuum seal. Outside diameter - 230 mm.

    PGV-1.10.02 - Vacuum tube with plate and vacuum seal. The outer diameter is 330 mm.

    ВС-01.02 - Console with 2 plates for fastening to the bench and fixing screws for the vacuum tube and console pipe.

    PGV-1.40.01 - stand (length, width, height, mm: 500х300х420)

    PGV-1.50.01 - Pneumopedal with hosepipes (inner diameter - 6 mm)

  • ПО-1

    Shoe Press


    Shoe press is used for effective glueingconnection of ashoe sole to anupper.

  • ПО-2

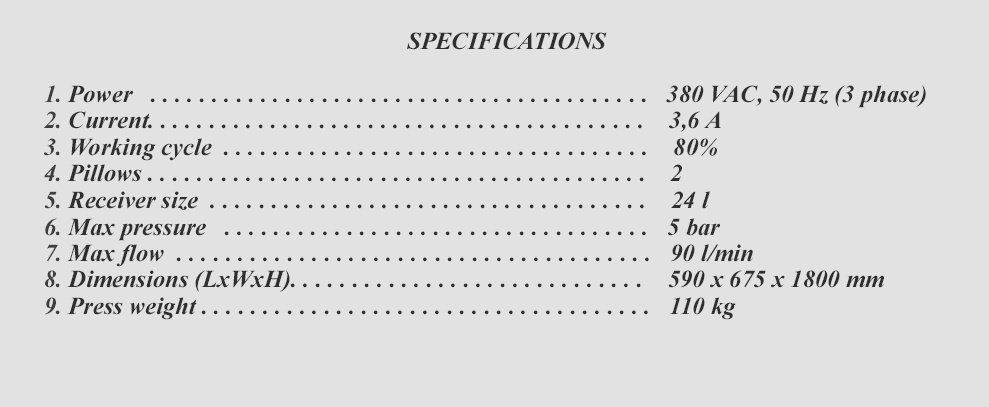

    Shoe Press


    Shoe press with double-acting posts is used for effective glue ingconnection of ashoe sole to an upper.

    Details
  • РВП-1

    Vacuum controller


    This vacuum controller VC-1 is designed to provide required vacuum for a working place of a prosthesist.VC-1 is used to manufacture orthoses and prostheses by deep vacuum lamination.
    VC-1 needs external vacuum line, for example FVS-1.

  • РМ-2

    Prosthesist working place-2


    The prosthesist working place is designed to manufacture a variety of orthotic and prosthetic components using deep lamination method.

    WP-2 has two vacuum controllers VC-1.

  • РМ-3

    Prosthesist working place-3


    The prosthesist working place is designed to manufacture a variety of orthotic and prosthetic components using deep lamination method.

    WP-2 has three vacuum controllers VC-1.

  • СВП-1

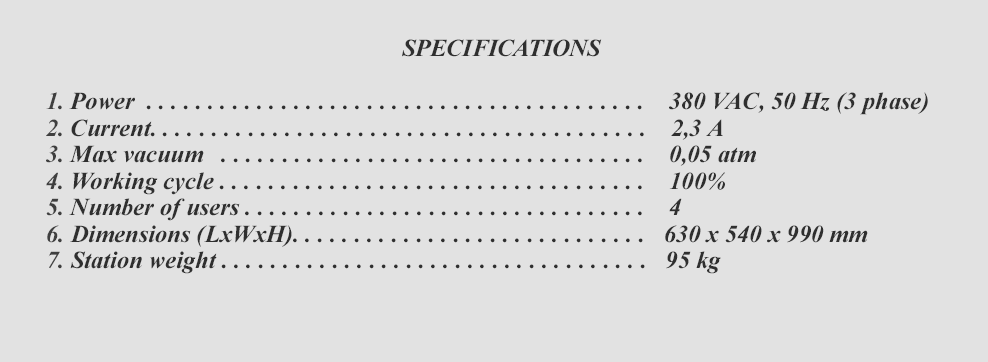

    Fixed vacuum station


    This fixed vacuum station with automatic control is used for supplying a working place of a prosthesist with required vacuum.

    Details
  • ТС-001

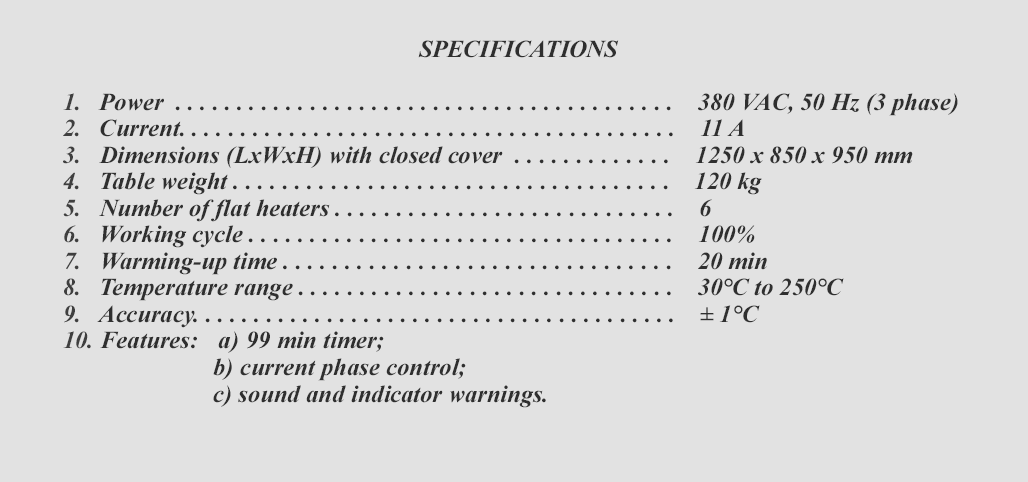

    Thermotable


    This thermotable is used for a broad variety of orthotic and prosthetic applications wherethermoplastic materials are used. TC-001 is officially registered: “ТУ У 14106297-003-99”.

    Details
