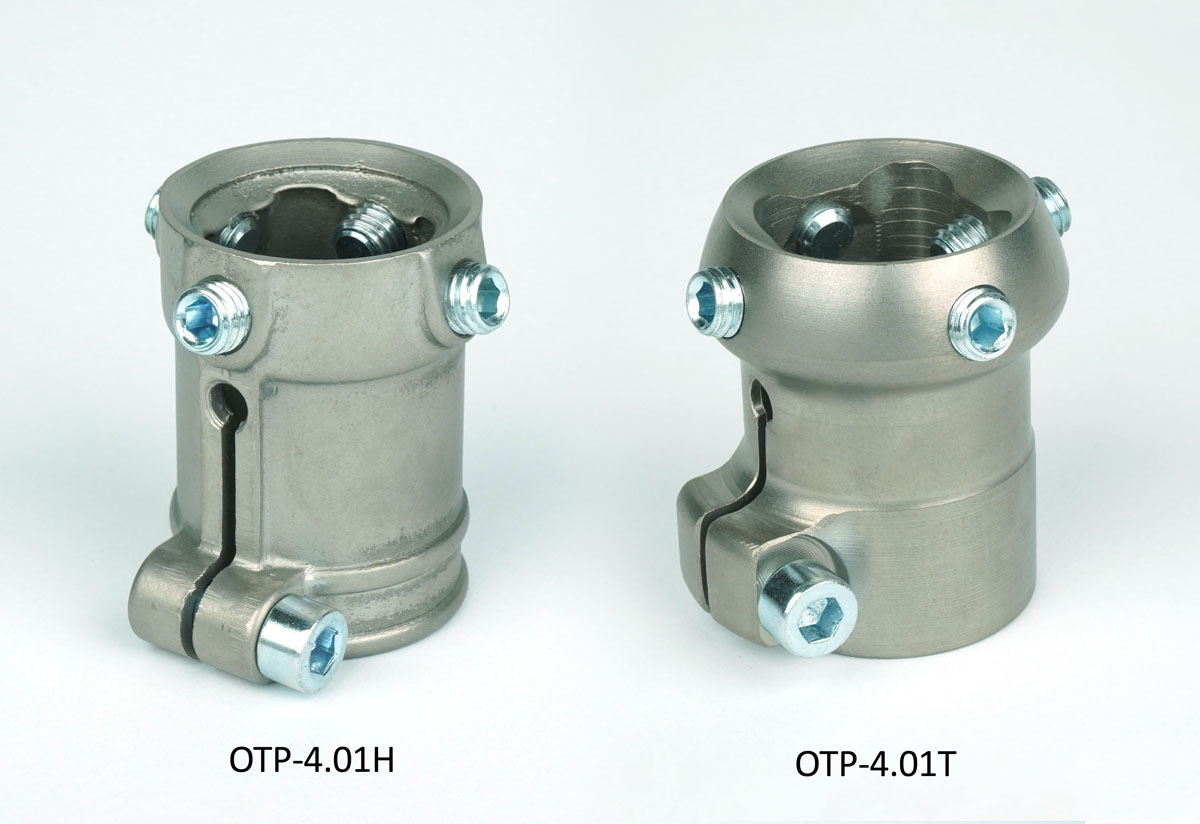

  • ОТР-4.01

    Clamp adapter

    Clamp adapter with 4 adjusting screws and clamp with tightening screw.
    It is designed to be used in various modular prostheses.

    Loading limit – 100 kg.
    Material: stainless steel (H) or titanium alloy (T).
    OTP-4.01H,   weight – 140 g.
    OTP-4.01T,    weight – 100 g.

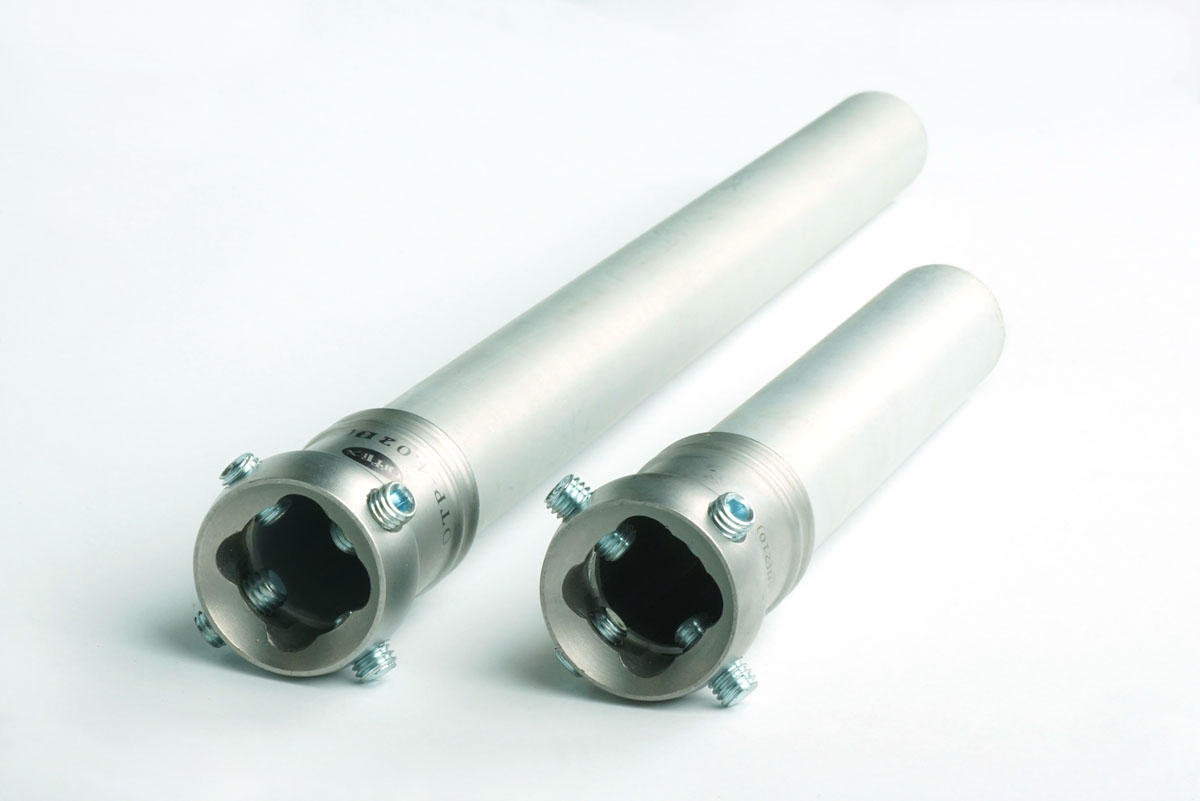

  • ОТР-4.02

    Tube adapter

    Tube adapter with 4 adjusting screws and bearing tube.
    It is designed to be used in various modular prostheses.

    Loading limit – 100 kg.
    Materials:
    - adapter: stainless steel (H) or titanium alloy (T);
    - aluminium tube (D=30х2 mm), intensified, with length of 210 mm and 400 mm.
    OTP-4.02H(210),   weight – 210 g.
    OTP-4.02Н(400),   weight – 320 g.

    OTP-4.02Т(210),   weight – 180 g.
    OTP-4.02Т(400),   weight – 280 g.

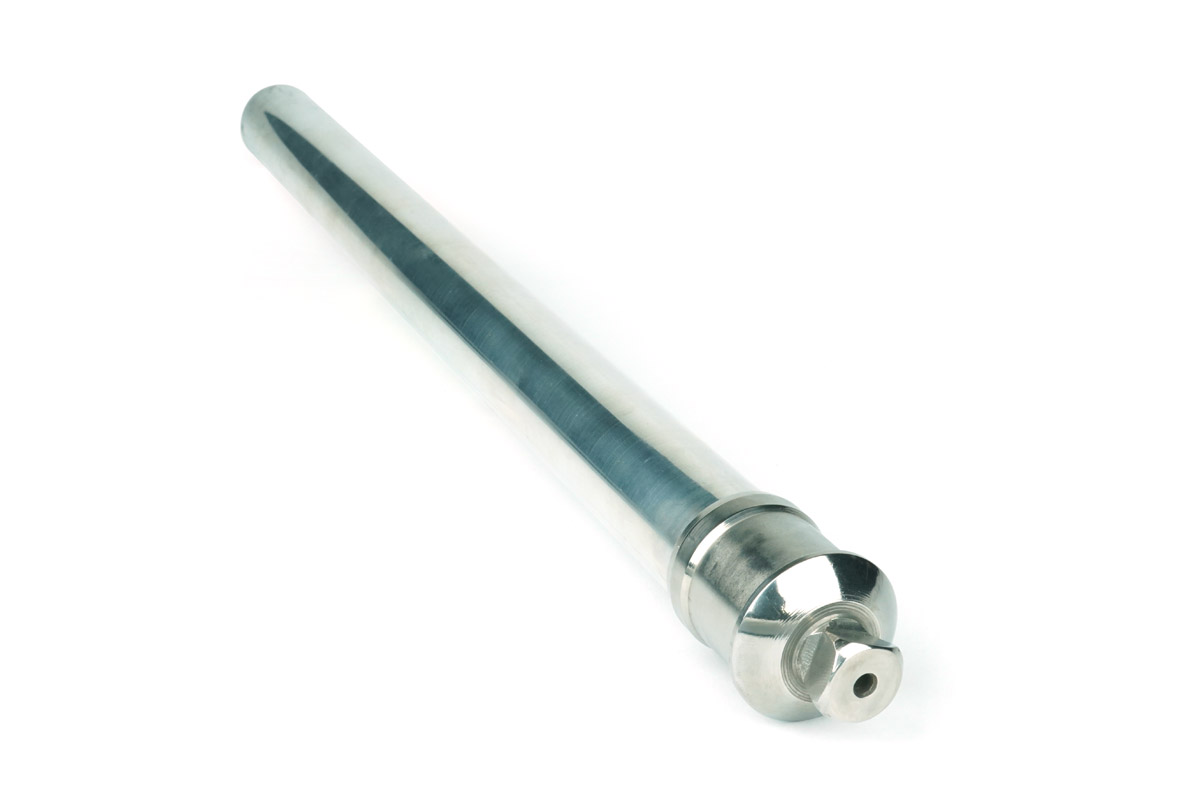

  • ОТР-4.03

    Tube adapter

    Tube adapter with pyramidal shrank and bearing tube.
    It is designed to be used in various modular prostheses.

    Loading limit – 100 kg.
    Materials:
    - adapter: stainless steel (H) or titanium alloy (T);
    - aluminium tube (D=30х2 mm), intensified, with length of 210 mm and 400 mm.
    OTP-4.03H(210),   weight – 180 g.
    OTP-4.03Н(400),   weight – 280 g.

    OTP-4.03Т(210),   weight – 150 g.
    OTP-4.03Т(400),   weight – 250 g.

  • ОТР-4.04Н

    Clamp adapter

    Clamp adapter with pyramidal shrank and a clamp with coupling screw.
    It is designed to be used in various modular prostheses.

    Loading limit – 100 kg.
    Material: stainless steel (H).
    OTP-4.01Н. Weight – 140 g.

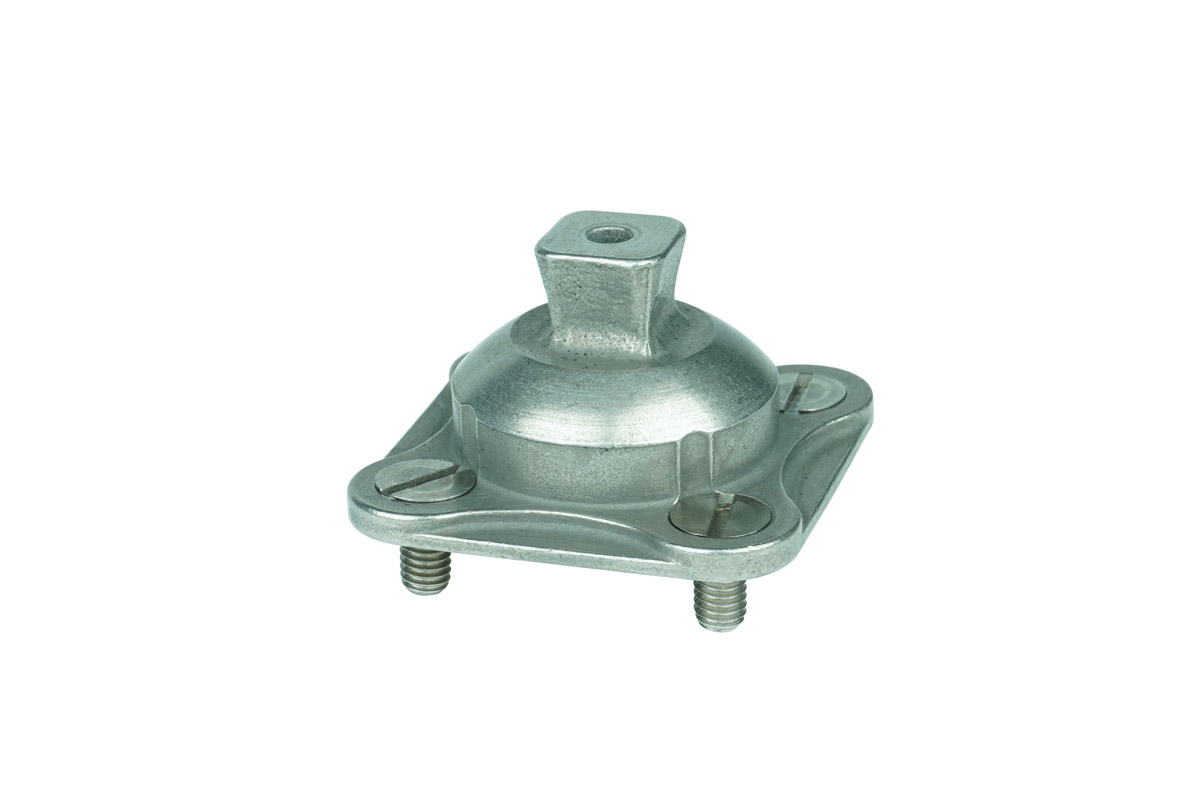

  • ОТР-4.12Н

    Clamp adapter

    Clamp adapter with pyramidal shrank and 4 screws for sleeve mounting.
    It is designed to be used in various modular prostheses.

    Loading limit – 100 kg.
    Material: stainless steel (H).
    Weight – 125 g.

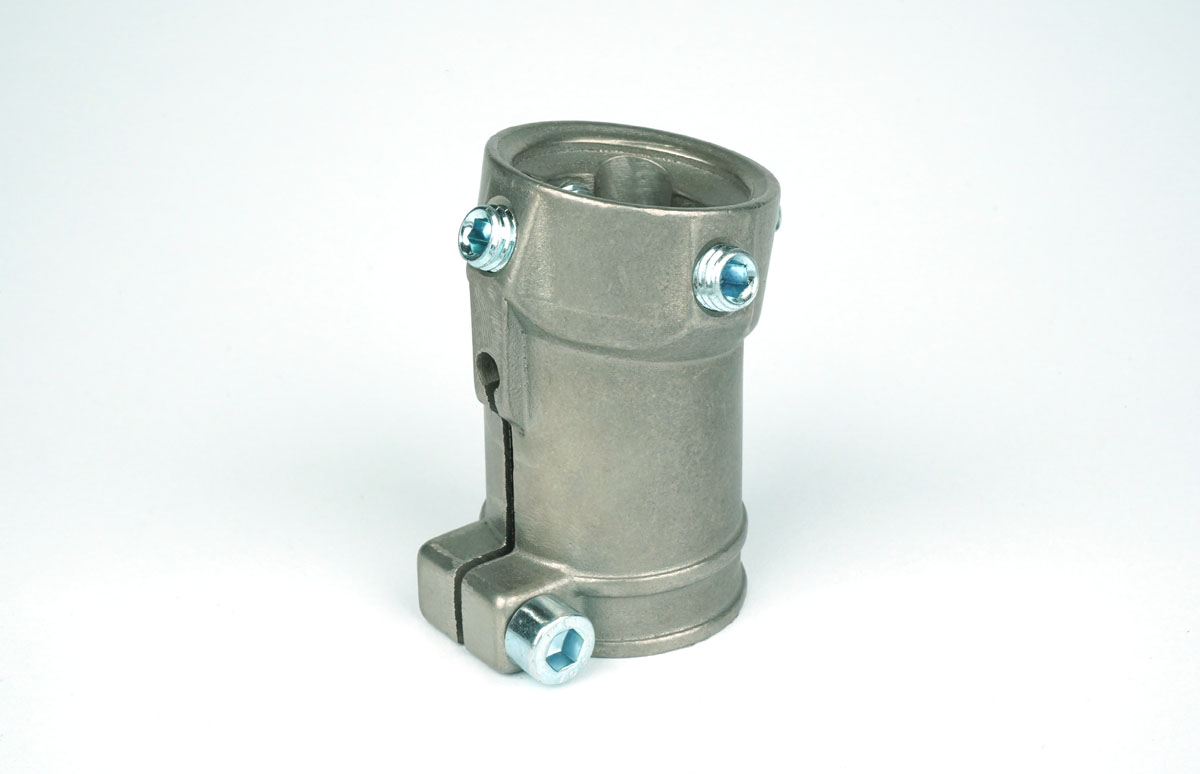

  • ОТР-4.13Н

    Corner clamp adapter

    Corner clamp adapter with 4 adjusting screws and a clamp with coupling screw.
    It is designed to be used in various modular prostheses.
    Angulation - 10°.

    Loading limit – 100 kg.
    Material: stainless steel.
    Weight – 140 g.

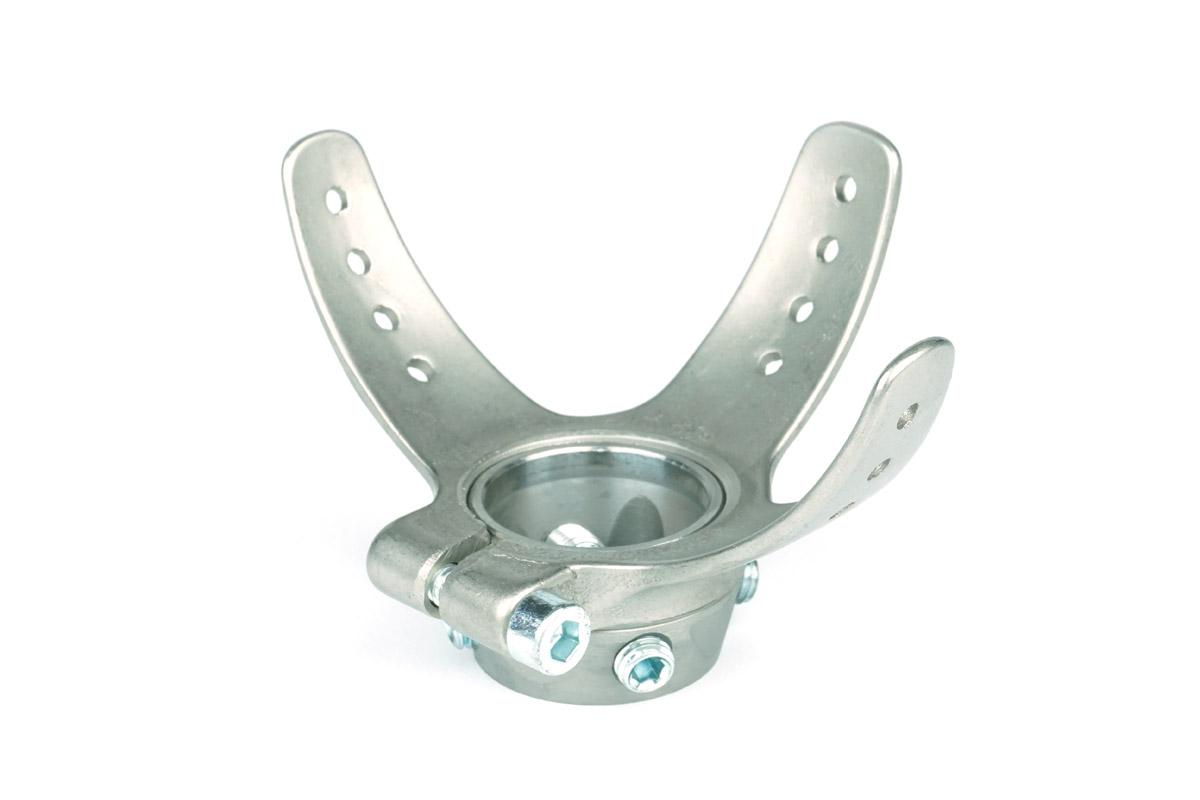

  • ОТР-4.22

    Sleeve adapter

    Sleeve adapter with rotation head, with 4 adjusting screws and 3 petals for lamination into the sleeve.
    It is designed to be used in various modular prostheses.

    Loading limit – 100 kg.
    Materials:
    - adapter case: stainless steel;
    - rotation head: stainless steel (Н) or titanium alloy (НТ);
    OTP-4.22H,    weight – 185 g.
    OTP-4.22HT,   weight – 170 g.

  • ОТР-4.23

    Sleeve adapter

    Sleeve adapter with rotation head, pyramidal shrank and with 3 petals for lamination into the sleeve.
    It is designed to be used in various modular prostheses.

    Loading limit – 100 kg.
    Materials:
    - adapter case: stainless steel;
    - rotation head: stainless steel (H) or titanium alloy (HT).
    OTP-4.23H,    weight – 200 g.
    OTP-4.23HT,   weight – 178 g.

  • ОТР-4.24

    Sleeve adapter

    Sleeve adapter with pyramidal shrank and with 4 petals for lamination into the sleeve.
    It is designed to be used in various modular prostheses.

    Loading limit – 100 kg.
    Materials: stainless steel or titanium alloy;
    OTP-4.24H,   weight – 100 g.
    OTP-4.24T,    weight – 70 g.

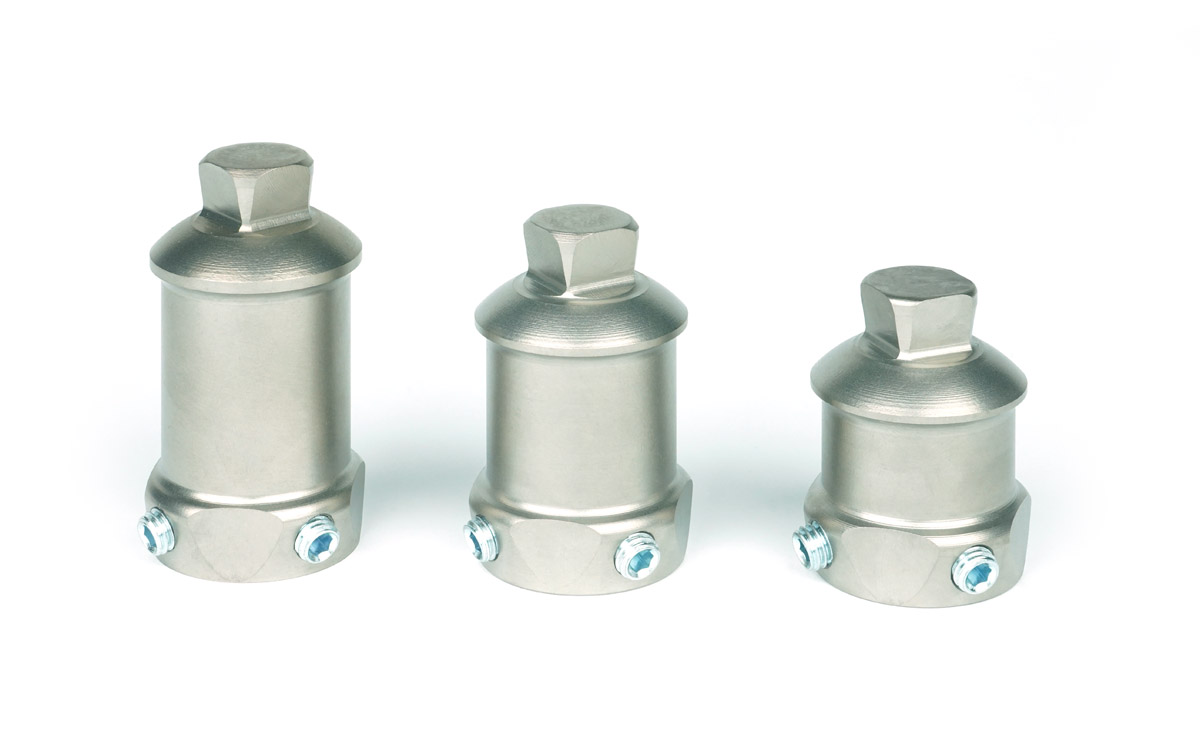

  • ОТР-4.25

    Double-adapter

    Double-adapter with 4 adjusting screws and pyramidal shrank.
    It is designed to be used in various modular prostheses.

    Loading limit – 100 kg.
    Materials: stainless steel or titanium alloy;
    Manufactured in 3 sizes by a length (L=XX):
    - OTP-4.25.1H (L=40),   weight – 140 g.
    - OTP-4.25.2H (L=50),   weight – 152 g.
    - OTP-4.25.3H (L=60),   weight – 164 g.

    - OTP-4.25.1T (L=40),   weight – 85 g.
    - OTP-4.25.2T (L=50),   weight – 92 g.
    - OTP-4.25.3T (L=60),   weight – 100 g.

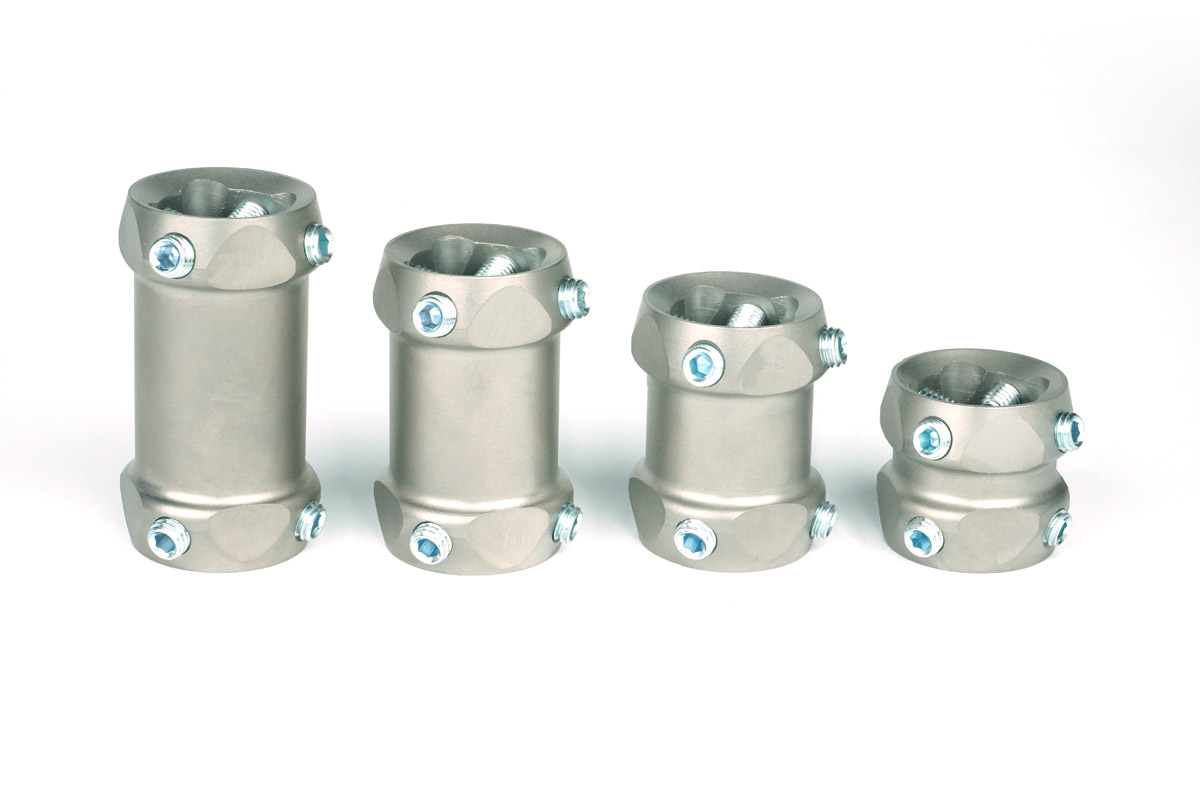

  • ОТР-4.26

    Double-adapter

    Double-adapter with 8 adjusting screws.
    It is designed to be used in various modular prostheses.

    Loading limit – 100 kg.
    Materials: stainless steel or titanium alloy;
    Manufactured in 4 sizes by a length (L=XX):
    - OTP-4.26.0H (L=35),   weight – 125 g.
    - OTP-4.26.1H (L=50),   weight – 150 g.
    - OTP-4.26.2H (L=60),   weight – 163 g.
    - OTP-4.26.3H (L=70),   weight – 172 g.

    - OTP-4.25.0T (L=35),   weight – 80 g.
    - OTP-4.25.1T (L=50),   weight – 95 g.
    - OTP-4.25.2T (L=60),   weight – 102 g.
    - OTP-4.25.3T (L=70),   weight – 108 g.

  • ОТР-4.27Н

    Sleeve adapter

    Sleeve adapter with pyramidal shrank and with 3 petals for lamination into the sleeve.
    It is designed to be used in various modular prostheses.

    Loading limit – 100 kg.
    Materials: stainless steel (H).
    Weight – 150 g.
